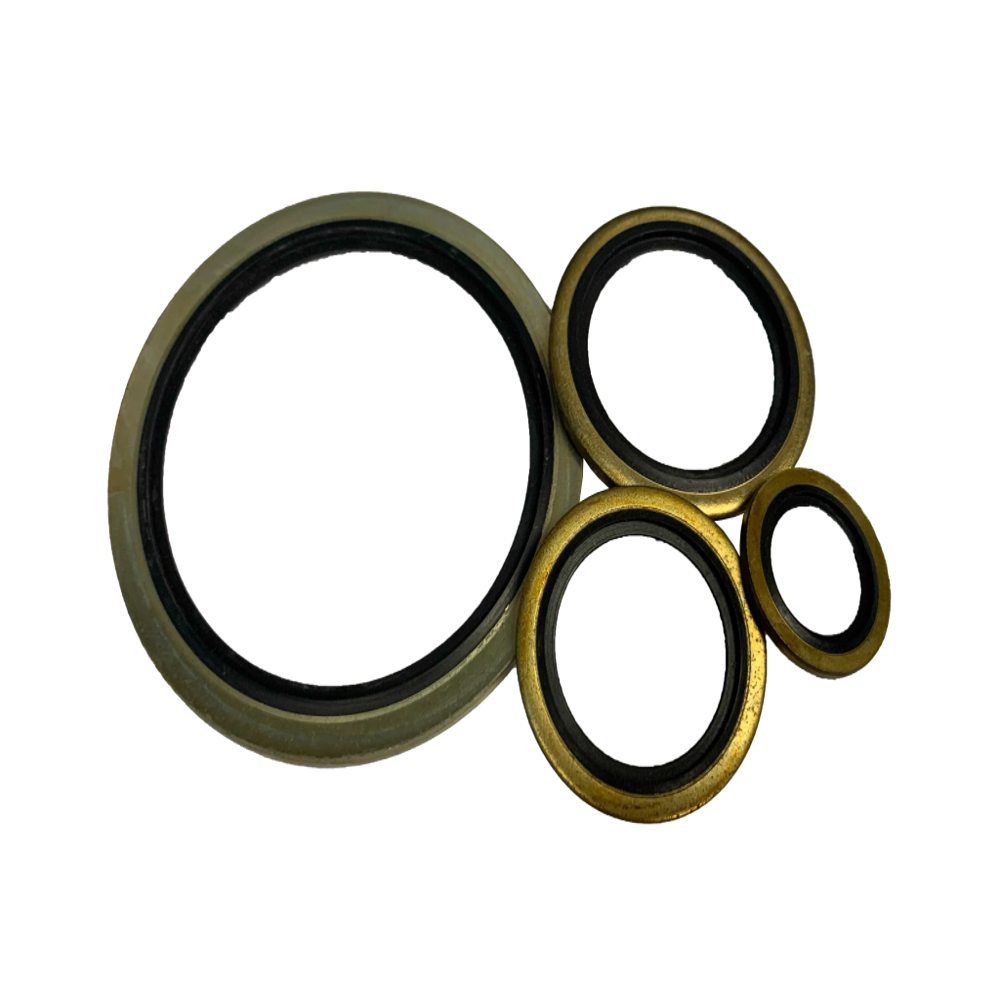

DOWTY WASHER (BONDED SEAL)

Price 3.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

DOWTY WASHER (BONDED SEAL) Specification

Oil Resistance
YES

Stock
5000000

Usage
a composite sealing component used to create a leak-free, high-pressure seal around screws, bolts, and threaded fittings in mechanical, hydraulic, and pneumatic systems

Style
Pneumatic

Product Type
OIL SEAL

Color
BLUE/GREEN/BLACK

Application
Hydraulic and Pneumatic Systems,Automotive,Industrial Machinery

About DOWTY WASHER (BONDED SEAL)

A Dowty washer (also known as a bonded seal) is a composite sealing component used to create a leak-free, high-pressure seal around screws, bolts, and threaded fittings in mechanical, hydraulic, and pneumatic systems.

Key Features and Composition

Structure: It consists of a hard metal outer ring and an inner elastomeric ring that acts as a gasket.
Materials: The outer ring is typically made of steel, zinc-plated steel, or stainless steel. The inner ring is usually made of Nitrile rubber (NBR) for standard applications, or Viton (FKM) for high-temperature needs.
Self-Centering Design: Many come with an extra lip or protrusion that ensures perfect alignment during assembly, preventing the rubber from becoming trapped or damaged.

How It Works

When the bolted connection is tightened, the metal ring limits the compression of the elastomer, compressing it to form a tight, positive seal against the mating flat surfaces. The metal outer ring prevents the seal from being over-tightened or deformed.

Common Applications

Hydraulic and Pneumatic Systems: Widely used to seal pipe joints, pumps, cylinders, and valve bodies.
Automotive: Commonly used for engine drain plugs and fuel systems.
Industrial Machinery: Ideal for preventing fluid and gas leaks in high-pressure environments, capable of handling up to 20,000 PSI.

Advantages

Requires significantly less bolt torque compared to standard metallic washers.
Reusable, highly reliable, and resistant to vibrations in harsh operating conditions.
Reduces assembly time since the parts are held captive as a single unit.
