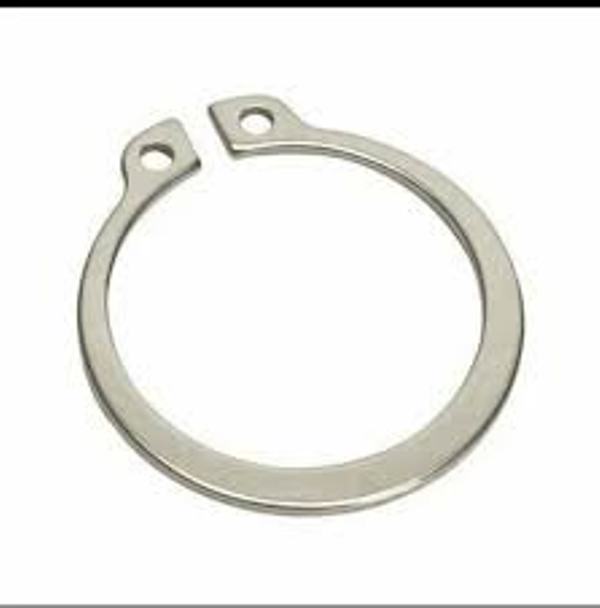

External Circlip

About External Circlip

An external circlip made of spring steel material is a type of fastener used to secure components onto a shaft or within a housing. Here's a detailed description:

Structure:An external circlip consists of a circular ring with one or more protruding lugs on its outer diameter. These lugs are bent inward slightly to facilitate installation into a groove on the outside of a shaft or within a housing. The circular shape of the circlip ensures even distribution of pressure when installed, providing a secure hold on the component.

Material:External circlips are commonly made of spring steel, a type of high-carbon steel known for its elasticity and resilience. Spring steel exhibits excellent spring properties, allowing the circlip to be flexed during installation and providing the necessary tension to retain the component securely within the groove.

Functionality:When installed into a groove on the outside of a shaft or within a housing, the external circlip exerts radial pressure against the walls of the groove, securely holding the component in place. The inward-bent lugs engage with the groove, preventing the circlip from dislodging unintentionally. This design ensures reliable retention of components even under dynamic or vibrating conditions.

Installation and Removal:Installing an external circlip typically requires specialized tools, such as circlip pliers, designed to compress the circlip for easy insertion into the groove. Removal can be achieved using similar tools, which compress the circlip, allowing it to be withdrawn from the groove.

Applications:External circlips find application in various industries and mechanical assemblies where components need to be securely retained onto shafts or within housings. They are commonly used in automotive, aerospace, machinery, and manufacturing equipment for securing bearings, gears, pulleys, and other rotating or sliding components.

Advantages:External circlips made of spring steel offer several advantages, including their high strength, durability, and corrosion resistance. The spring properties of the material ensure reliable retention of components even under challenging conditions, making them suitable for a variety of applications.

In summary, external circlips made of spring steel material are essential fasteners used to secure components onto shafts or within housings. Their robust construction, combined with the properties of spring steel, ensures dependable retention and long-term performance in diverse mechanical assemblies.
