MB Lock Washer

About MB Lock Washer

An MB washer, also known as a "Belleville washer," is a type of conical spring washer commonly used in mechanical assemblies to provide a preload or tension force, compensate for thermal expansion or contraction, or absorb shock and vibration. Here's a detailed description:

Structure:An MB washer typically has a conical or cupped shape, resembling a shallow dish or dome. It is usually made of spring steel, stainless steel, or other high-strength materials capable of withstanding high loads and repetitive stresses. The washer may have a smooth or serrated surface to enhance its grip on the mating surfaces.

Functionality:The primary function of an MB washer is to exert a controlled axial force or tension when compressed between two mating surfaces, such as a bolt head and a nut. When installed, the washer flattens or deforms slightly, creating a preload or tension force that helps to secure the joint and prevent loosening due to vibration or thermal cycling. The conical shape of the washer allows it to act as a spring, providing flexibility and resilience to accommodate variations in load and thermal expansion.

Applications:MB washers are commonly used in various industries and applications where reliable preload, tension, or shock absorption is required. They are found in automotive, aerospace, construction, machinery, and manufacturing equipment, where they are used in bolted connections, pressure vessels, flanges, couplings, and other mechanical assemblies. MB washers are particularly useful in applications subject to dynamic loads, vibration, or temperature fluctuations, as they help to maintain the integrity and stability of the joint over time.

Advantages:MB washers offer several advantages, including their ability to provide a consistent preload or tension force, compensate for thermal expansion or contraction, and absorb shock and vibration. They are easy to install and remove, making them suitable for a wide range of applications. The conical shape of the washer allows for efficient energy absorption and dissipation, reducing the risk of fatigue failure or damage to the mating surfaces.

In summary, an MB washer, or Belleville washer, is a versatile and reliable component used in mechanical assemblies to provide preload, tension, or shock absorption. Its conical shape and spring-like properties make it well-suited for applications subject to dynamic loads, vibration, or thermal cycling, ensuring the integrity and stability of the joint over time.

Essential Component for Secure Bearing Assemblies

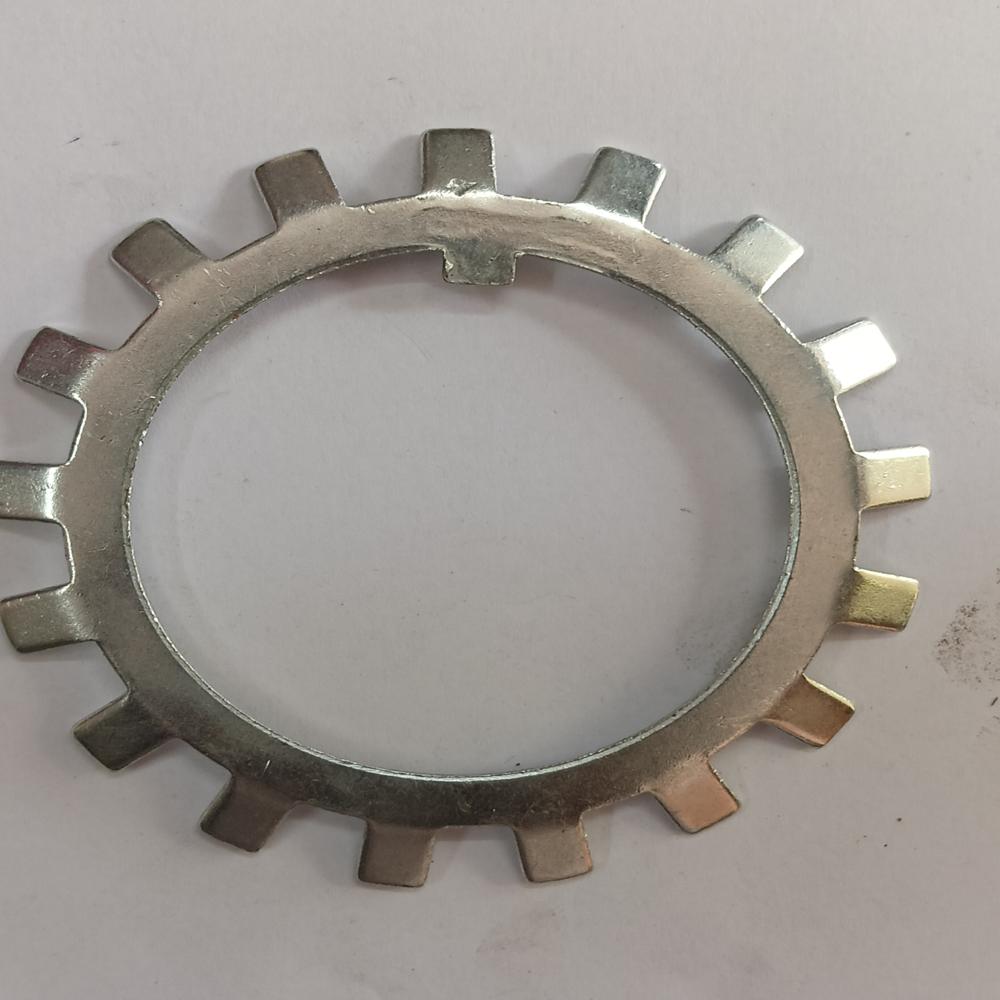

An MB lock washer acts as a vital mechanical locking device when used with KM, KML, and HM series lock nuts. Its unique design with an inner tab prevents lock nut rotation, thus enhancing the reliability and service life of machinery. MB washers are essential where dynamic loads, vibration, or shock are likely to cause accidental loosening.


Durable Zinc-Plated Steel Construction

Crafted from high-quality steel or mild steel (MS) and coated with zinc plating, MB lock washers resist corrosion and provide long-lasting service in harsh industrial environments. Their robust build ensures consistent performance even under continuous operational stress, making them a trusted component for various industries.
